FBT Fiber Optic Cable Splitter With Single Window

Name: FBT Fiber Optic Cable Splitter With Single Window
Brand: Fujioptics/OEM/ODM
Price: 1 USD

Wholesale FBT Fiber Optic Cable Splitter With Single Window from china suppliers

Brand Name : Fujioptics/OEM/ODM

Model Number : FJ-SC018

Certification : ROHS.CE ,ISO9001

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiation

Payment Terms : L/C, D/P, Western Union

Supply Ability : 10000pcs

Delivery Time : 5-7 working days

Packaging Details : PE bag ,Carton box

Connector Type : SC,FC,LC,ST

Ferrule End-face : PC, UPC,APC

Fiber Mode : SM MM

Wavelength : 1310/1550/1490/850/1300

Package : Steel Tube, ABS Black Box

Structure : 1*2/1*4/1*8/1*16/1*32/1*64

High Light : optical fiber splitter, fiber optic coupler

Contact Now

1*2 1*3 1*5 1*6 1*7 FBT Fiber Optic Splitter with Single Window

Description:

FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

Feature:

Low Excess loss

Various Coupling Ratio

Environment stable

Single mode and multi mode available

Application:

Long-haul Telecommunications

CATV Systems & Fiber Optic Sensors

Fiber Optic communication system

Local Area Network

Specification:

Parameters	1×2	1×4	1×8	1×16	1×32
Operating Wavelength (nm)	1310/1490/1550
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	17/17.4
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Temperature Stability (-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85

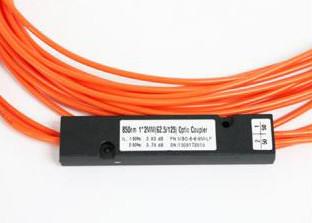

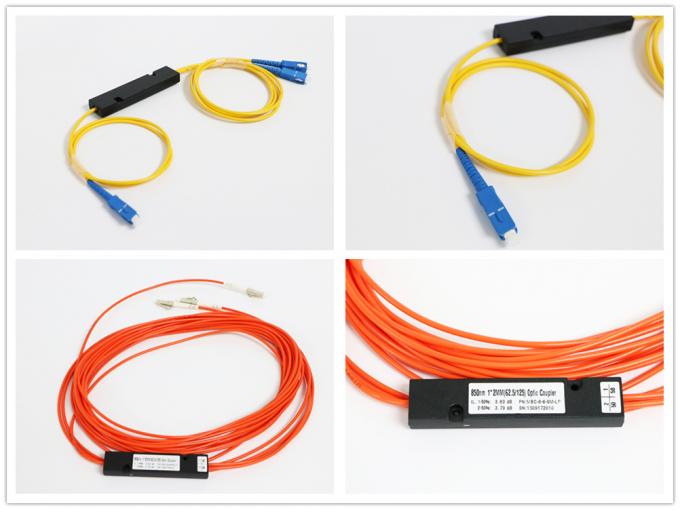

Product Picture:

FBT Fiber Optic Cable Splitter With Single Window
